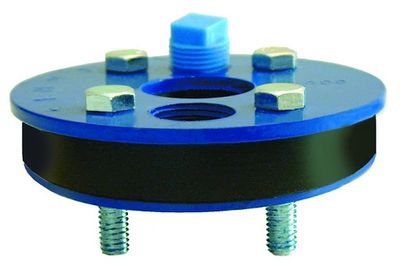

Cast iron
Single Drop Pipe - Split Top Plate - Submersible
Class 25 Non-toxic lead free powder coated cast iron.
Zinc plated steel bolts.
Single hole.
3/4" molded rubber, 50 Durometer.
Available sizes 3 x 1 through 8 x 4

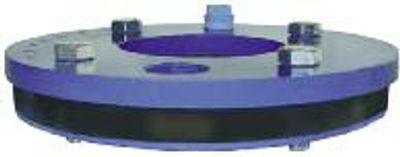

Steel well seal
Single Drop Pipe - Split Top Plate - Submersible
A36 hot roll steel. • Single Hole.
Zinc plated steel bolts.
3/4" molded rubber, 35 Durometer.
Powder coated polyester finish.
Available sizes 3 x 1-1/4 through 16 x 10
Steel well seal
Single Drop Pipe - Solid Top - Submersible Pump
A36 hot roll steel. • Single Hole.
Zinc plated steel bolts.
3/4" molded rubber, 35 Durometer.
Powder coated polyester finish.
Available sizes 3 x 1-1/4 through 16 x 10
Steel well seal for 6.90" o.d. casing
Single Drop Pipe - Solid Top - Submersible Pump
A36 hot roll steel.
Zinc plated steel bolts.
3/4" molded rubber, 35 Durometer.
Powder coated polyester finish.
Available sizes 6-1/4 x 1 through 6-1/4 x 4

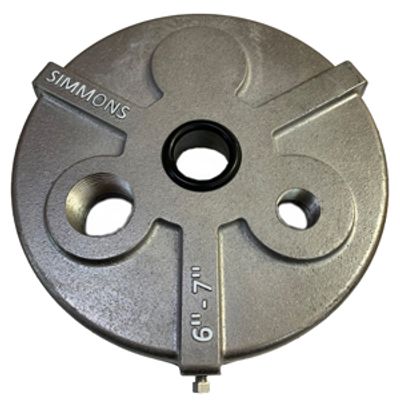

OVER THE TOP ALUMINUM WELL SEAL
Cast Aluminum Single Drop Pipe
319 Cast Aluminum
Buna-N Seal on top of casing
Machined drop pipe seat with Buna-N O-ring
Three SS set screws
Maximum load 15,000 lbs.
Available sizes 4-4-1/2 through 10 x 4
